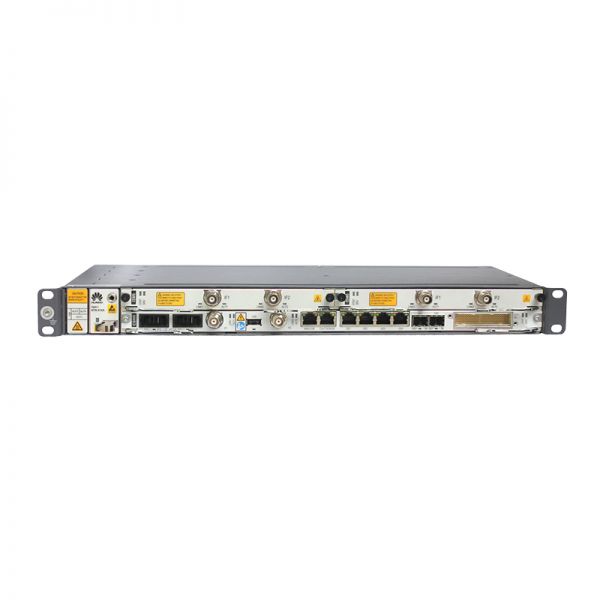

Huawei OptiX RTN 910A Specification | |
Network Layer | Access and Aggregation layer |
Frequency | 6 to 42 GHz |
Channel Spacing | 3.5/7/14/28/40/56/112 MHz |
Modulation Mode | QPSK Strong, QPSK, 16QAM Strong, 16QAM, 32QAM, 64QAM, 128QAM, 256QAM, 512QAM, 512QAM Light, 1024QAM, 1024QAM Light, 2048QAM, 4096QAM |
Number of RF Directions | 6 |
Air-Interface Capacity | 1166 to 2500 Mbit/s per carrier (none-XPIC) |
Switching Capacity | 10 Gbit/s (CSHR) 60 Gbit/s (CSHRF) |
TDM Cross-connect Capacity | 8 × 8 VC-4 |
Interface Type | CSHR: 4 × GE, 2 × FE/GE/2.5GE, 16 × E1 CSHRF: 2 × GE, 4 × 10GE/2.5GE/ GE, 1 × COMBO, 16 × E1 |
Configuration Mode | ·N+0 (N ≤ 6) ·N × (1+0) (N ≤ 6) ·1+1 ·N+1 (N ≤ 5) ·XPIC ·4×4 MIMO ·2CA |
Ethernet Function | ·Ethernet ll, IEEE 802.3, and IEEE 802.1q/p service format adding or deleting, and exchange VLAN tags (IEEE 802.1q/p) ·ISIS, OSPF, BGP, RSVP, LDP ·Flow control (IEEE 802.3x) ·Link aggregation groups (IEEE 802.3ad LAG and L1 LAG) ·RMON (IETF RFC 2819) |
Service Type | ·Native Ethernet services: E-Line service and E-LAN service ·PW-carried Ethernet services: E-Line service, E-AGGR service, and E-LAN (VPLS) service (VPLS standing for virtual private LAN service) ·L3VPN, L2VPN (VLL), CES, MCE |
Key Feature | CES E1, IEEE 1588v2, H-QOS, PLA/EPLA/EPLA+, AES-256 encryption, Anti-theft, 1+1,N+1, XPIC, AM, TDM, PWE3/MPLS, L3VPN, SDB, CA, MIMO |
IDU Dimensions | 442 mm × 220 mm × 44 mm |
Environment | Temperature: IDU -5°C to +60°C; ODU -33°C to +55°C Humidity: IDU 5% to 95%; ODU 5% to 100% |
Power | -38.4 V to -57.6 V |
Typical Power Consumption | CSHR： 89 W (2×(1+0)) CSHRF： 105.5 W (2×(1+0)) |
Certificate | CE, RCM, FCC, IC, ETL, MCMC |
