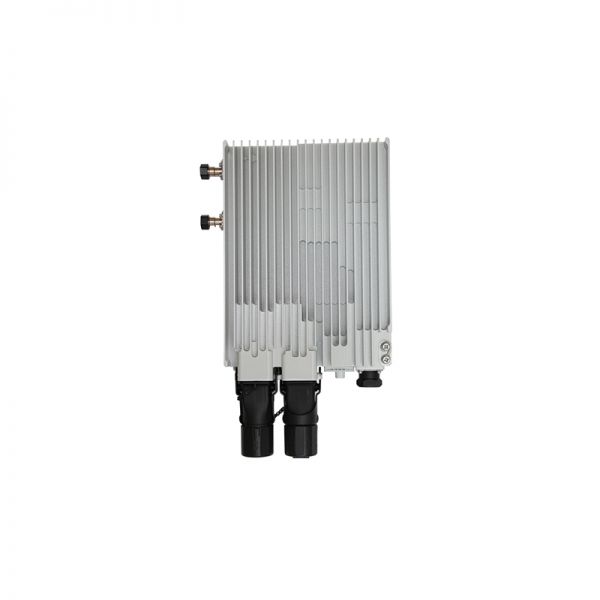

Huawei OptiX RTN 320F Specification | |
Microwave Type | IP microwave over Native Ethernet |
Frequency Band | 6-42 GHz |
Channel Spacing | ETSI: 7 MHz, 14 MHz, 28 MHz, 40 MHz, 56 MHz, 112 MHzFCC: 30 MHz, 40 MHz, 50 MHz |
Modulation Scheme | QPSK strong-4096QAM |
Capacity | Air-interface capacity: 2.24 Gbps (the total capacity of two channels)Air-interface throughput: 5 Gbps (the total capacity of two channels)Switching capacity: 60 Gbps |
RF configuration | N+0 (N ≤ 4), multi-direction, 1+1 HSB/SD/FD, XPIC |
Port Type | Auxiliary port: USB port, NMS port, MIMO/CA cascade port (hardware ready) Service port: • Two 10 GE SFP ports IF port: Two IF ports Power port: DC port, P&E port |
Service Type | E-Line and E-LAN |
NMS | NCE, Web LCT, SNMP |
ETH OAM | IEEE 802.1ag, IEEE 802.3 ah, ITU-T Y.1731 |
Key Features | AM, XPIC, Bandwidth Notification, PLA/EPLA, ERPS, Frame Header Compression, ATPC, QoS/HQoS |
Clock Features | Supported clock sources: microwave link clock, synchronous Ethernet clock |
Power Supply Mode | DC power supply; P&E |
Antenna | Dish antenna: 0.2–3.7 m |
Dimensions | 220 mm x 300 mm x 60 mm |
Environment | • Temperature: –33ºC to +55ºC • Humidity: 5% to 100% • Protection class: IP66 |
