Table 1 shows the Quick Specs.

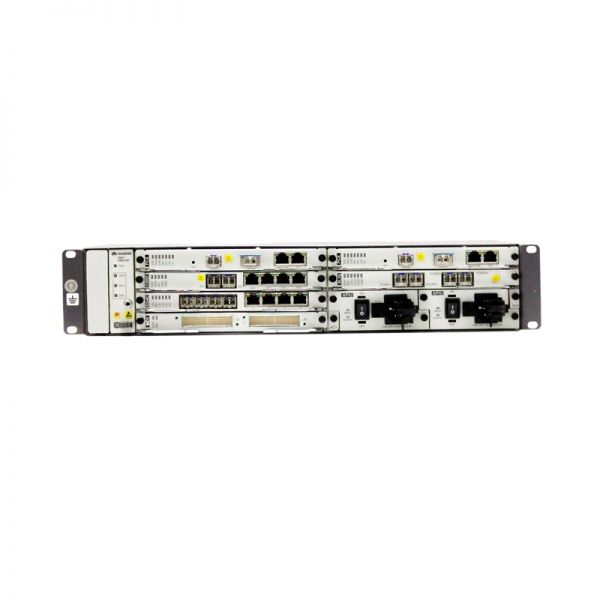

Product Code | Huawei OptiX OSN 550 |
Dimensions | 88mm (H) x 442mm (W) x 220mm (D) |
Installation method | In a cabinet (including ETSI, 19-inch and 23-inch cabinets), in an outdoor cabinet |
Switch capacity | Packet: 64 Gbit/s ,TDM: 20 Gbit/s (higher order) |
Service slots | 8 slots |
Power Supply | -48 V DC/-60 V DC 220 V AC/110 V AC |
Huawei OptiX OSN 550 provides these features:
• Universal Platform with Soft and Hard Pipes
- Universal switching: TDM and packet service switching with a universal switch fabric
- Unified access: Including SCADA, Voice, Clock, Teleprotection, OA,MIS and CCTV/Video Services
- Hard pipe: Physical Separation and high QoS to ensure service security and reliability
- Soft pipe: Statistical multiplexing to efficiently carry high-bandwidth data services
• Next-Generation PCM/MUX Simplifies Networks
All-in-One Solution
- Reduces stacking of different devices, simplifying network layers
- With universal transport platform that support all applications, easy to expand and evolve
- Unified management, end-to-end service configuration, and easy troubleshooting.
Highly integrated design
- Provides high-integration PCM boards with multiple interfaces, including AT8, FXSO12, and DXM , 3 cards provide the functionality of traditional 11 cards
• MPLS-TP Achieve High Efficiency and Easy Rollout
Multiprotocol Label Switching-Transport Profile (MPLS-TP), a connection-oriented packet transport technology that is decoupled from IP and combines the transport requirements such as strong OAM and protection. By using MPLS-TP, the customer will have the following
- Guaranteed Performance from end-to-end committed bandwidth mechanism
- 99.999% availability: 50 ms recovery for both linear and ring applications
- SDH-like OAM mechanism provides capable of fast detection and troubleshooting, including end-to-end performance monitoring
- MPLS-TP based O&M solution TP-Assist provides efficient planning, fast deployment and easy maintenance, making the large-scale packet network easily manageable
• Industrial Certifications Ensure Reliable Operation
- Compliant with EN 50121-4, IEC 61850-3, IEC 61000-6-5, IEEE 1613
