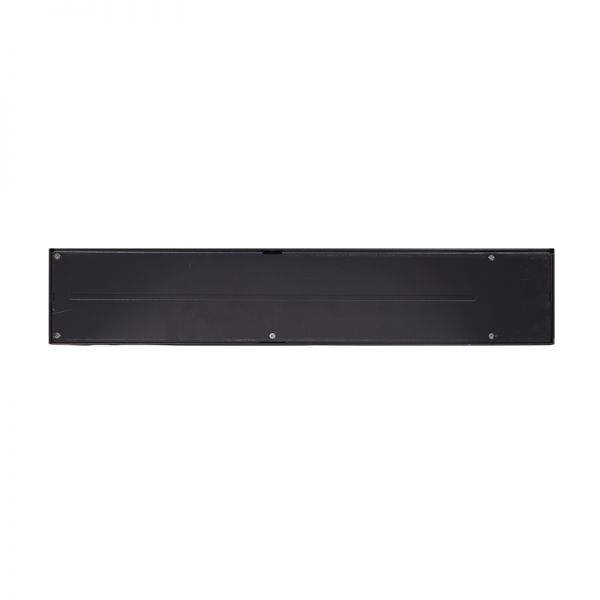

Huawei OptiX OSN 1800 II Compact Specification | ||
Dimensions (mm) | 88 x 442 x 220 (H x W x D) (excluding mounting ears) | |
Number of service board slots | DC chassis: 7 AC chassis: 5 | |
Crossconnection | Optical layer | 1-degree to 9-degree ROADM |
Electrical layer | • Inter-board cross-connection: supports cross-connections of Any services at a rate lower than 1.25 Gbit/s and 10GE LAN services. • Intra-board cross-connection: supports cross-connections of Any services at a rate lower than 2.5 Gbit/s and VC-4 or VC-12 and ODU0/ODU1/ODUflex/ODU2/ODU4 services. | |
Wavelength | • DWDM: 80-wavelength DWDM system • CWDM: 8-wavelength CWDM system | |
Maximum rate per channel | 200 Gbit/s | |
Supported service type | SDH/SONET, PDH, OTN, Ethernet, CPRI, OBSAI, SAN, video, and others | |
Redundancy and protection | Equipment-level protection | Power supply backup and fan backup |
Network-level protection (OTN) | Optical line protection, intra-board 1+1 protection, client 1+1 protection, ODUk SNCP, SW SNCP, and LPT | |
Network level protection (Ethernet) | ERPS, LAG, service-based LPT, MSTP, STP, RSTP, and VLAN SNCP | |
Synchronization | • Physical-layer clock (OTN&SDH) • IEEE 1588v2 (OTN) • ITU-T G.8275.1/G.8273.2 (OTN) | |
Power supply | DC power input • Standard operating voltage: –48 V DC/–60 V DC • Operating voltage range: –48 V DC: –40 V to –57.6 V –60 V DC: –48 V to –72 V AC power input • Standard operating voltage: 110 V AC/220 V AC • Operating voltage range: 100 V AC to 240 V AC | |
Installation mode
| • ETSI 300 mm deep cabinet, such as N63E, N63B, and A63B • Wall-mounted | |
